Configuration

The Configuration Menu contains the following items:

  • Communications Setup. This menu item allows you to change the COM port number, address, and baud rate of the communications port used to connect the touch screen interface to the SDS mainboard.

  • Compact Database. When clicked, Compact Database optimizes and reduces the size of the database contained on the storage card.

  • Read/Write Data. Using this feature, you can view the raw data on the underlying hardware and also write data to the underlying hardware. This feature should not be used in most circumstances.

  • About. This option simply shows the About screen for Super Systems SDS, as shown in Figure 38 - The About Screen.

  • Shut Down Software. This option shuts down the SDS touch screen.

  • Set Serial Number. This feature allows you to change the serial number of the touch screen software. This setting should not be changed.

  • Degree Type. This feature allows you to change the unit of measurement used for temperature—degrees Fahrenheit or degrees Celsius.

  • Product Type. This feature allows you to change the SDS product type as it is known to the touch screen software.

Figure 47 - Location of Ambient
(External) Thermistor

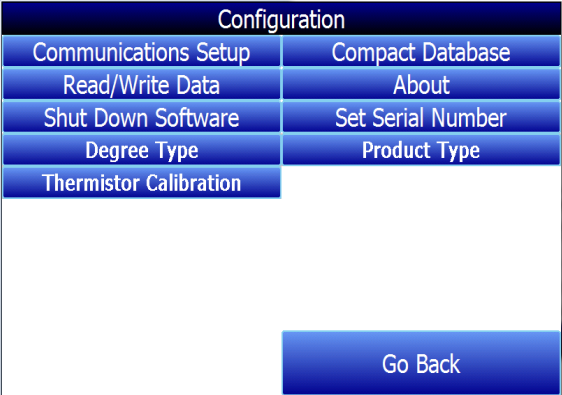

Figure 48 - Configuration Menu



IMPORTANT: Before attempting to access Configuration features, please contact Super Systems Inc. Technical Support (513-772-0060).
