Curve Entry



Most types of inputs that are used in SSi controllers are already setup with a curve built for most every type of thermocouple available, certain vacuum sensors, etc.  However, if an application calls for an input without a standard curve, the curve can be built using this option.  Voltages can be paired with corresponding values to create a sensor curve based on a provided equation or data the user manual or technical data for the sensor.  This allows the controller to make appropriate readings from the sensor.

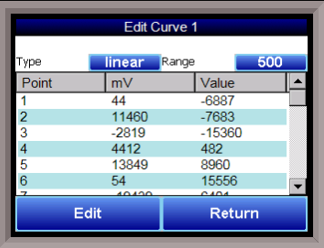

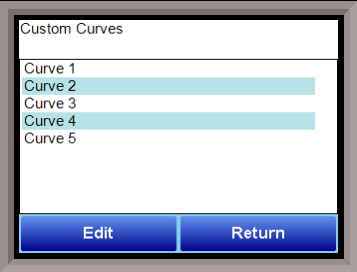

The first screen shows that five separate curves can be edited.  Selecting one of Curve 1-5 and pressing Edit will display the screen where new curves can be assigned.  The type can be toggled between Linear and None.



The Range value sets up the range of the curve.



Thirty-two points can be assigned by selecting one of the points and pressing Edit.  However, not all 32 points have to be used. For points that are not used, they can be left at their default values. This allows the operator to change the Millivolts and the corresponding Value by clicking on each option.  Pressing OK will save the point.



The Return button will return the user to the menu screen.
