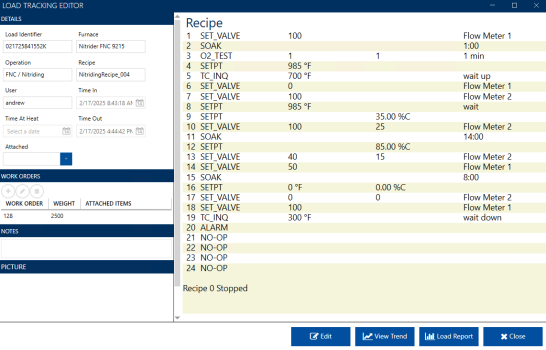

Load Tracking Editor



Double click on a highlighted load to open the Load Tracking Editor for that load.





The Load Tracking Editor will display a unique load identifier, along with details about the completed load; including Furnace, Operation, Recipe, User, Time In/Out, Time at Heat, and any attachments.  Any Work Orders associated with the load will be displayed as well, along with the recipe used during the load.  Notes can be added if desired.



Clicking “Edit” will make the information editable.  Make any necessary changes, then click “Save” to save those changes.



Clicking “View Trend” will bring up trend information from SDRecorder Pro.  See the manual for SDRecorder Pro for additional information on this functionality.



Clicking “Load Report” will generate a Load Report based on desired parameters and information (see functionality above).



Clicking “Close” returns you to the History screen.
