Schedule Screen

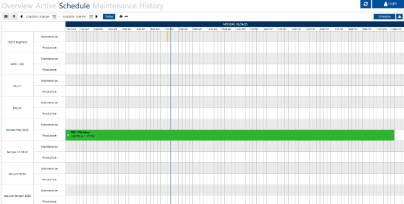

The Schedule screen shows a calendar view of furnace usage.  This view can be toggled to a list view using the icon at top left.



The Filter button allows you to customize what funaces are displayed, and to limit display to Maintenance and Production tasks (if Maintenance is enabled).



Use the date and time boxes to set the range visible on screen.



The forward and backward arrows will move the entire view back or forward one day.



Click “Today” to set the view for the current day.



Clicking the + and – buttons will increase or decrease the size of each individual furnace in the display.  As the display size increases, scroll up or down to view all the furnace information.



Holding Shift while using the mouse scroll wheel will scroll the display forward and backward in time.  Holding Ctrl while using the mouse scroll wheel will increase/decrease the visible time range (i.e. zoom in and out of the timeline).



Clicking will display any tasks that are past due.
