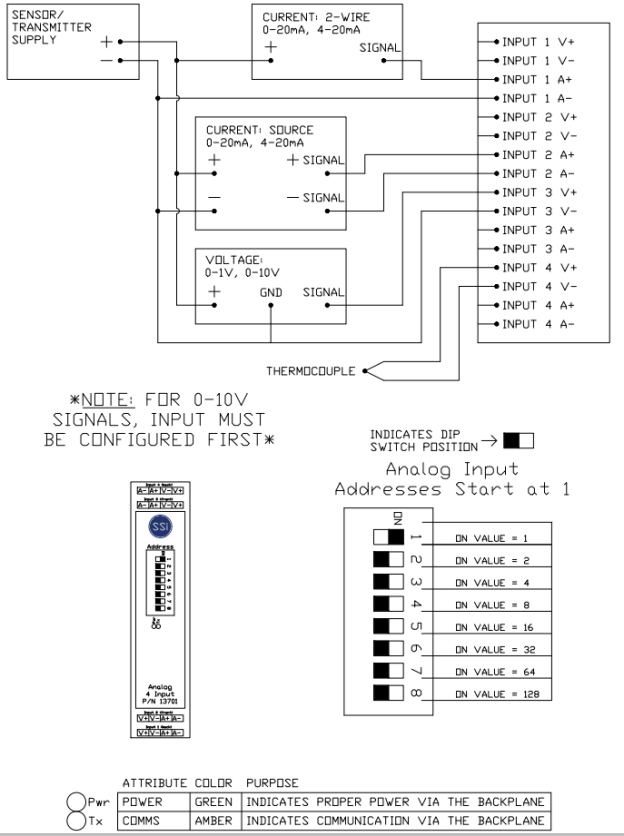

13701 – 4-Analog Input Module

Inputs

4

Input ranges

20 mV

40 mV

80 mV

160 mV

312.5 mV

625 mV

1.250 V

2.500 V

12.50 V

25.00 V

0-20 mA

4-20 mA

Thermocouple types

B

C

E

J

K

N

M

R

S

T

D

G

P

Resolution

24 bits

Working voltage

24 VDC

Current draw @ 24 VDC

55mA

Input impedance

Current terminals: 62Ω

Voltage terminals (12.5V and 25V ranges): 20 kΩ

Voltage terminals (all other): > 40 mΩ

TC accuracy

+/- 2.0°F (1.1°C) or 0.2% of temp reading,

(whichever is greater)

Isolation voltage

1000V

Dimension

4.25” x 0.9” x 4.5”

(99mm x 22.5mm x 114.5mm)

Slot width

1

Module location

DIN rail

Terminal Type

5mm pitch
