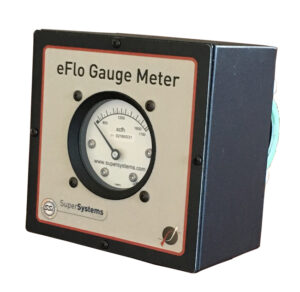

Analog Flow Meter (Gauge Valve Meter)

The SSI Gauge Meter uses differential pressure technology to accurately display gas flow for industrial gases in the harshest industrial environments. With many different options for gas types and pressures, the gauge meter is the perfect solution for visual representation of gas flow in your application.

Applications include Nitrogen Purge, Enriching Gas (solenoid control), Dilution Air (solenoid control), Endothermic Gas, Natural Gas for heating, etc.

Gauge-Web

Features and Benefits

Simple installation into existing gas line
Easy to read flow indicator
Fixed gas ranges
Calibration ports for verification of flow
Horizontal or vertical mounting
No moving parts
No maintenance needed
1 1/4" or 2" NPT


Supported Gases

Nitrogen
Air
Endothermic Gas
Natural Gas
Contact SSi for Ammonia compatibility and other gas options

PowerNo power required
Accuracy~10%
Gas Temperature Limits32°F to 120°F (0°C to 48.9°C)
Operating Temperature Limits32°F to 120°F (0°C to 48.9°C)
Pressure Limits:25 psig max
Pipe Fitting1 1/4" or 2" NPT
