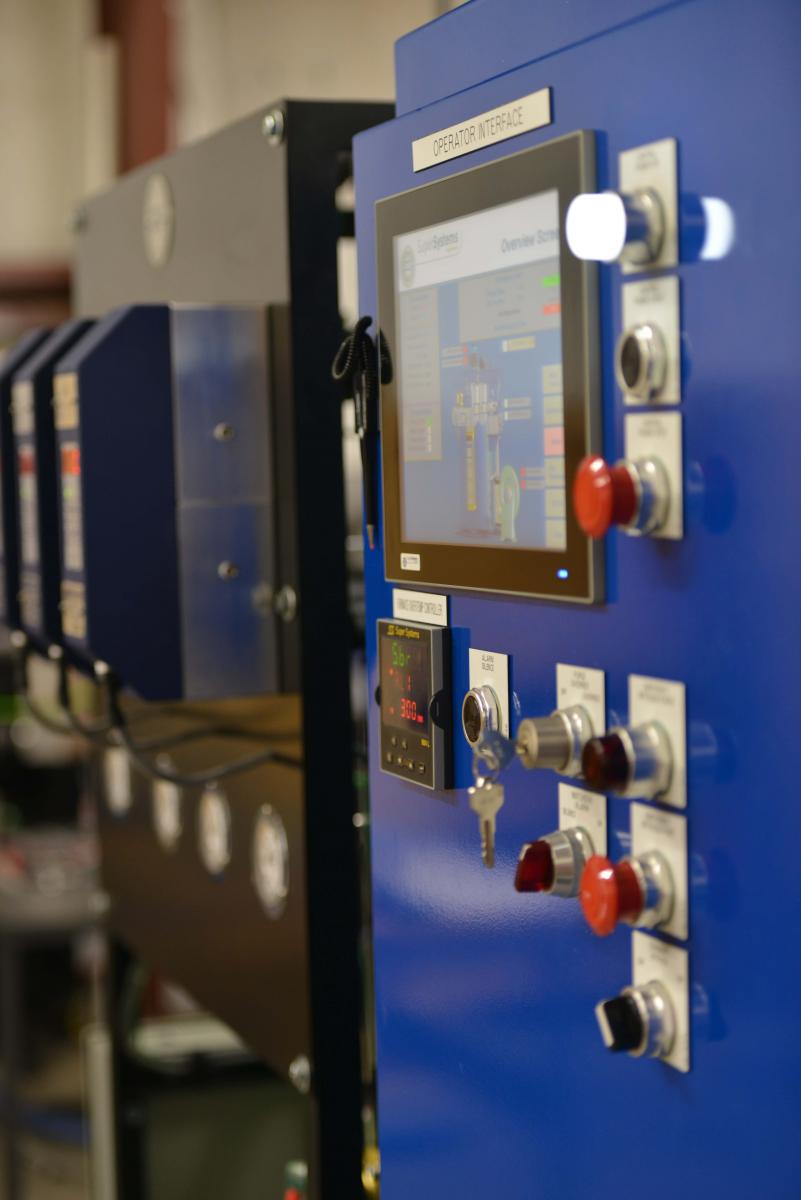

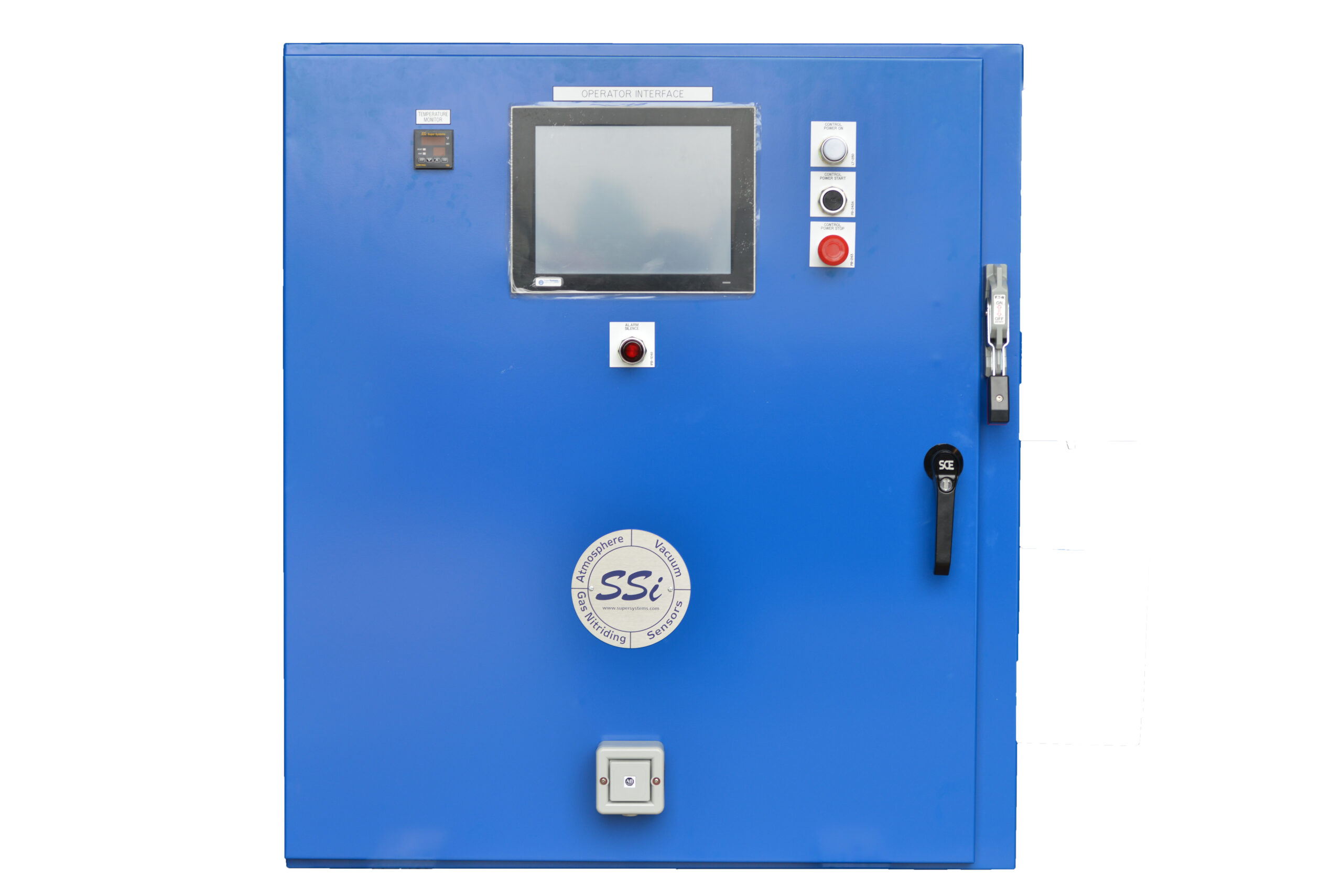

Super Systems provides furnace control panels for new and existing furnace applications. Our control systems are designed based on furnace specifications and customer requirements. We have addressed almost every atmosphere application in heat treating with various control packages. The controls are designed to meet industry specifications such as AMS 2750, 2759 and NFPA. We build control panels that are efficient for operators to use, conserve floor space and include all drawing sets and installation services.
| Features |
|---|
| Four (4) batch furnaces (SSi’s Matrix and Series 8) |
| Four (4) temper furnaces & four (4) washers |
| 15″ color operator interface (touch-screen) |
| Allen-Bradley MicroLogix 1200 PLC |
| PC Configurator™ |
| Features |
|---|
| SSi’s Matrix Series with Touch Screen HMI |
| Allen-Bradley PLC |
| PC Configurator |
| Large color operator interface (touch screen) |
| Features |
|---|
| Quench temperature control and hi-limit |
| Dell computer (inner door-mounted) |
| SSi’s SuperDATA™ |
| PC Configurator™ |
| Large color operator interface (touch screen) |
| DPC2530 – Continuous Dew Point Analyzer |
| Keyboard and mouse shelf |
| Features |
|---|
| SSi’s Matrix Series dual-loop controller (Ethernet and RS485 Modbus RTU communication ports) |
| Recipe control for easy-to-program and easy-to-run cycles |
| Atmosphere and Temperature Control |
| User-defined events and alarms |
| PLC for furnace mechanical movements and safety circuits |
| Furnace hi-limit controller (804L) |
| Features |
|---|
| SSi’s Matrix Series dual-loop controller (Ethernet and RS485 Modbus RTU communication ports) |
| Recipe control for easy-to-program and easy-to-run cycles |
| Atmosphere and Temperature Control |
| User-defined events and alarms |
| PLC for furnace mechanical movements and safety circuits |
| Furnace hi-limit controller (804L) |
| Customizable HMI with built in data logging. Meets AMS 2750 G requirements. |
| Step-based recipe control |
| Sophisticated alarming for atmosphere and temperature deviation, gas flows and furnace mechanicals |
| All power control for furnace including fusing, disconnects, SCRs |
| Complete control panel or existing cabinet retrofits |
| Fully programmable (lights out operation) |
| Full engineering services, electrical drawings, installation and metallurgical evaluation |
