SuperOx

SuperOx

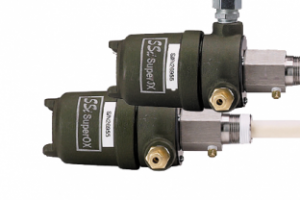

Oxygen sensor for combustion control in re-heat furnaces, boilers and incinerators.

This in-situ oxygen sensor measures % Oxygen concentrations directly in the combustion area of high temperature furnaces, boilers and incinerators. It is intrinsically safe and generates a very low millivolt output based on the oxygen content of the atmosphere.

Request a Quote
2super-ox-1
gp_hot-1

Features:

Available in a number of standard lengths – 18″ (457mm), 27″ (685mm), and 36″ (915mm)
Available in both alumina and silicon carbide outer sheaths
Rapidly replacing older/outdated, non-current patented, non-rebuildable in-situ oxygen sensors
Field performance can be collaborated using external “verification” port
“B”, “S”, and “R” thermocouples are available
Temperature Range: 1150 to 3000 °F (620 to 1650 °C)
Useful O2 Range:
10-26 to 20.95% (air reference)
10-25 to 100.0% (pure oxygen reference)
Cooling air maintains positive pressure to ensure the integrity of the electrical connections in harsh environments
Outer electrode is not “painted” on the zirconia electrolyte, eliminating the antiquated “boot” design
Years of application experience maximizes sensor life and performance in high-slag, turbulent environments


Alumina Sheath:

ModelOverall LengthInsertion LengthType SType RType BNo T/C
X1827.2″ (692mm)18.9″ (479mm)1827800182710018272001827000
X2635.2″ (895mm)26.9″ (682mm)1825800182510018252001825000
X3644.6″ (1133mm)36.2″ (920mm)1826800182610018262001826000

Silicon Carbide Sheath:

ModelOverall LengthInsertion LengthType SType RType BNo T/C
X1827.2″ (692mm)18.9″ (479mm)1837800183710018372001837000
X2635.2″ (895mm)26.9″ (682mm)1835800183510018352001835000
X3644.6″ (1133mm)36.2″ (920mm)1836800183610018362001836000
