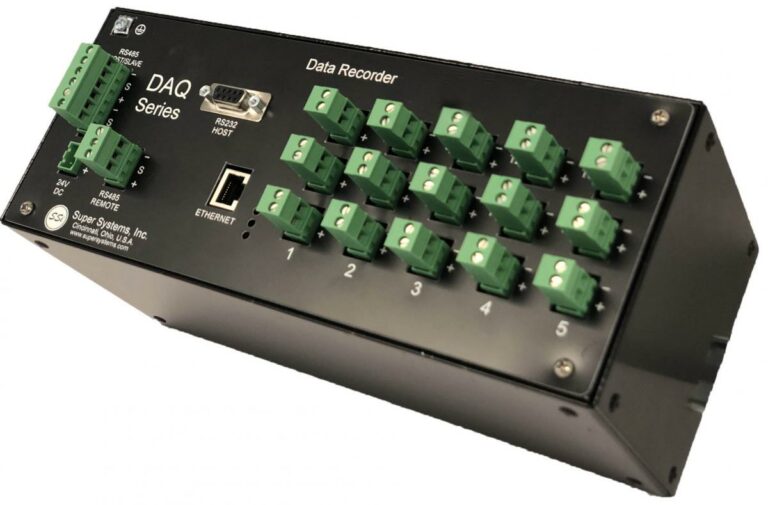

DAQ units are used for creating digital data from analog inputs. The compact footprint and modular design make it a simple, cost-effective solution for continuous data logging back to a SCADA system.
| Cost-effective solution for digitally capturing analog inputs |
| Completely isolated universal analog inputs |
| No HMI (video screen) required |
| Direct connection to SCADA software |
| Available with up to 15 inputs in one DAQ module |

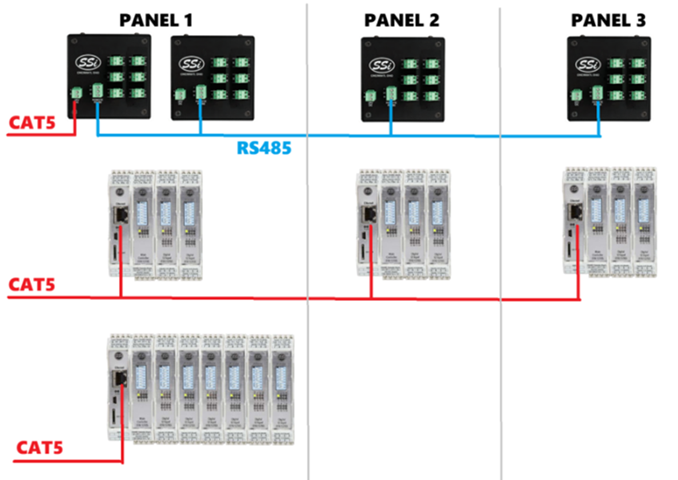

| Expandable to 48 inputs maximum |
| Software configuration utilities |
| Removable terminal block for easy wiring |
| Ethernet communications |
| Available in multiple universal analog input configurations with up to 15 points |
| Small footprint allows easy placement in control panels |
| Remote mounting for ease of termination |
| Completely isolated analog inputs |
| 24 VDC powered module |
| Communications Ports – RS485 and Ethernet |
| Communications Protocol – Modbus RTU, Modbus TCP |
| Product Line | User Manual | Datasheet | Wiring | Other |
|---|---|---|---|---|
| DR (Digital Recorder) | PDF | Online | DR Datasheet | ||
| VR Paperless Chart Recorder (Legacy product) | PDF | Online | VR/DAQ Datasheet | ||
| DAQ Fixed Data Logger | PDF | Online | VR/DAQ Datasheet | ||
