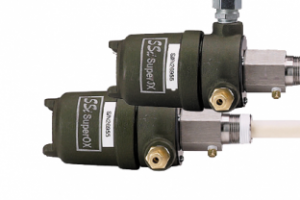

SuperOX – Combustion, %Oxygen
Oxygen sensor for combustion control in re-heat furnaces, boilers and incinerators.
This in-situ oxygen sensor measures % Oxygen concentrations directly in the combustion area of high temperature furnaces, boilers and incinerators. It is intrinsically safe and generates a very low millivolt output based on the oxygen content of the atmosphere.
| Features: |
|---|
| Available in a number of standard lengths - 18" (457mm), 27" (685mm), and 36" (915mm) |
| Available in both alumina and silicon carbide outer sheaths |
| Rapidly replacing older/outdated, non-current patented, non-rebuildable in-situ oxygen sensors |
| Field performance can be collaborated using external "verification" port |
| "B", "S", and "R" thermocouples are available |
| Temperature Range: 1150 to 3000 °F (620 to 1650 °C) |
| Useful O2 Range: 10-26 to 20.95% (air reference) 10-25 to 100.0% (pure oxygen reference) |
| Cooling air maintains positive pressure to ensure the integrity of the electrical connections in harsh environments |
| Outer electrode is not "painted" on the zirconia electrolyte, eliminating the antiquated "boot" design |
| Years of application experience maximizes sensor life and performance in high-slag, turbulent environments |
Glass Melting – Glass Furnace / Ceramic Kilns Exhaust Stacks
| Features: |
|---|
| 24/7 monitoring of combustion stack oxygen |
| Interface with existing combustion control system |
| Low maintenance, NO calibration |
| Probe verification |
| Oxygen sensor is rebuildable |
| Optional "sample" dryer |
| Optional "sample" pump |
| Optional interface with Ethernet |
| Optional interface with 4-20mA Damper Control |
| What does this do for you? |
|---|
| It gives you an input to control your air-fuel ratio |
| It will improve the QUALITY of the product |
| It will reduce maintenance costs |
| It will allow product consistency |
Alumina Sheath:
| Model | Overall Length | Insertion Length | Type S | Type R | Type B | No T/C |
|---|---|---|---|---|---|---|
| X18 | 27.2" (692mm) | 18.9" (479mm) | 1827800 | 1827100 | 1827200 | 1827000 |
| X26 | 35.2" (895mm) | 26.9" (682mm) | 1825800 | 1825100 | 1825200 | 1825000 |
| X36 | 44.6" (1133mm) | 36.2" (920mm) | 1826800 | 1826100 | 1826200 | 1826000 |
<class=””>
Silicon Carbide Sheath:
| Model | Overall Length | Insertion Length | Type S | Type R | Type B | No T/C |
|---|---|---|---|---|---|---|
| X18 | 27.2" (692mm) | 18.9" (479mm) | 1837800 | 1837100 | 1837200 | 1837000 |
| X26 | 35.2" (895mm) | 26.9" (682mm) | 1835800 | 1835100 | 1835200 | 1835000 |
| X36 | 44.6" (1133mm) | 36.2" (920mm) | 1836800 | 1836100 | 1836200 | 1836000 |
